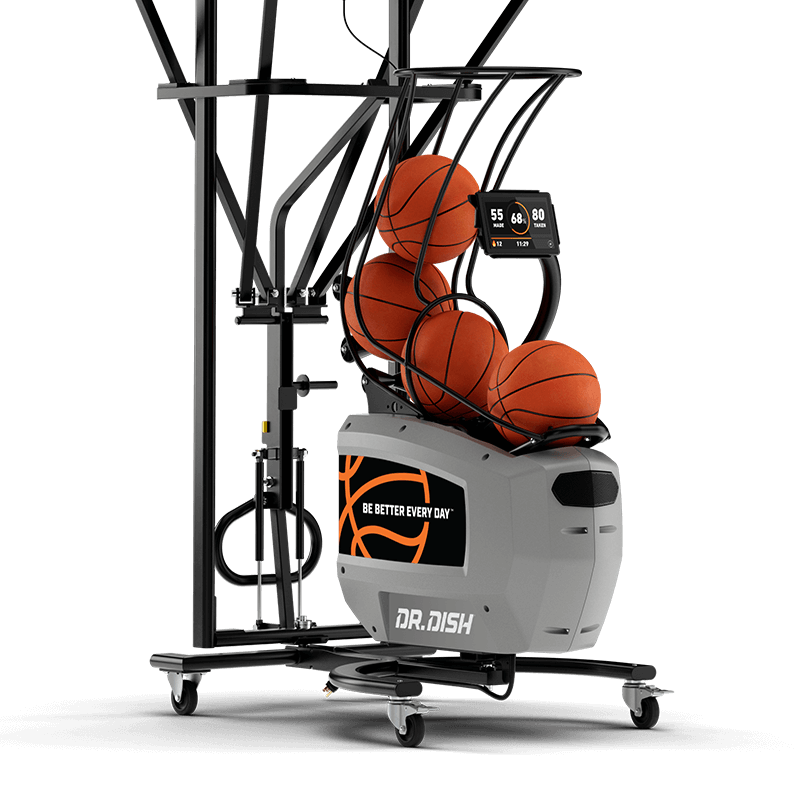

Setting Up Your New Dr. Dish Rebel+

1. Cut band and lift box off of pallet and machine
2. Cut off all white zip ties (do NOT cut any black zip ties)
3. Remove all accessories from the back of the machine
4. Remove protective plastic wrap from the entire machine

1. Cut white zip ties off the Ball Feeder
2. Remove cardboard spacer lowering Ball Feeder
3. Install Ball Feeder by inserting 2 M8 Bolts & Washers
4. Attach the Ball Distance Knob by twisting until tight, and move the Distance Lever to position 2
5. Install the Ball Distance Plate using 4 M6 Screws & Washers

1. We recommend two adults remove the machine from the pallet
   *The Dr. Dish weighs 296 lbs/134.3 kilos with all four wheels attached
2. Move the machine so the back wheels are off the pallet and resting on the ground
3. Grab the front of the machine, twist it to the side and set the front of the machine on the ground

1. Route the power cord from the shot counter basket through the shot counter handle until it comes out of the oval opening
2. Insert Shot counter Head into Shot Counter Handle
3. Using the 8 mm Allen Wrench & 17 mm Open Wrench included, bolt together the Shot Counter Basket and Shot Counter Handle

When you're ready to start shooting, with the machine away from the basket:

1. Rotate the base of the Machine until at a 45-degree angle
2. Extend all 4 netting poles until snapped into place, ensuring the net is not caught in frame
3. Pull the netting handle outward and down to raise the net
4. Once the handle is fully snapped into place, flip down the yellow safety latch to lock the net in position
5. Insert the Shot Counter securely on the back frame of the Dr. Dish and tighten the knob and connect the power cord
6. Wheel the machine directly under the basket until the rear poles are even with the backboard
7. Once in place, lock the wheels of the machine

1. Using a type W 120V extension cord, connect the machine's cord into an outlet
2. Turn on the Main Power Switch on the back of the machine (the front of the machine will have a Blue light blinking confirming there is power)
3. Hold down the HUD Touchscreen Power Button for 10 Seconds until the screen turns on
   1. Click ‘Start Shooting’ in the bottom right corner of the Loading Screen to access the Home Screen.
   2. On the Left side, select the WiFi logo to connect to your Network.

The Home Screen displays multiple ways you can use the machine to get started shooting. Check out some of our Favorite features!

1. Build a Drill - Completely Customize your training by choosing shot locations, drill modes, & attributes to fit your training needs.
2. My Training - View all your favorite drills, as well as customized drills
